Alarm Light Unit - B450 - FRU
M1233494
New
Patientenmonitoring
Patient Monitors
GE Healthcare
GE Healthcare
zum Wunschzettel hinzufügen
Im Shop anmelden
Im Shop anmelden
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

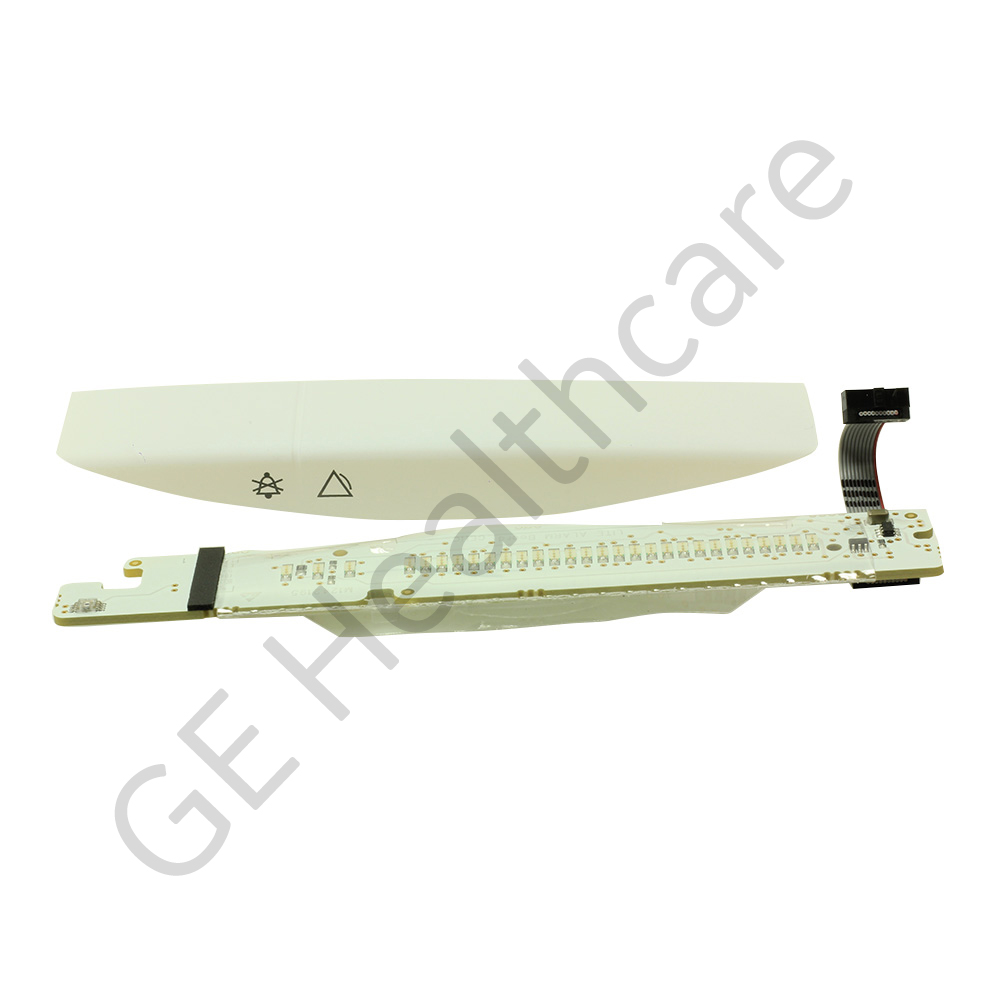

The Alarm Light Unit is a Field Replacement Unit (FRU) for CARESCAPE™ B450 monitors. The kit is comprised of alarm light board, alarm light cable assembly and plastic alarm light lens. The kit also consists of instruction manual, lens label, packing label BOM, ESD sticker, bubble wrap, desiccant bag and packing box. The DC power supply board passes +3.3 V and +5 V supply voltages to the alarm light board. The right side of the alarm light board contains red, yellow and blue LEDs to display different priority visual alarms. The alarm light board has a separate light sensor capable of measuring ambient light intensity. The alarm light board is connected to the DC/DC board through alarm light cable assembly. The lens is made up of high quality polycarbonate material that has excellent chemical resistance and a flame retardant capability, which makes it well suited for many medical applications. The service parts are securely packaged inside a high quality corrugated box and are supported by bubble wrap and antistatic bag to avoid physical damage during transit.

Kompatible Produkte

CARESCAPE B450

CARESCAPE B450
