Power Supply 115/230V AC 26, 5V DC Printed circuit Board (PCB) Single Output
93011858
New
Diagnostische Kardiologie
Ruhe EKG
GE Healthcare
GE Healthcare
N/A
zum Wunschzettel hinzufügen
Im Shop anmelden
Im Shop anmelden
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

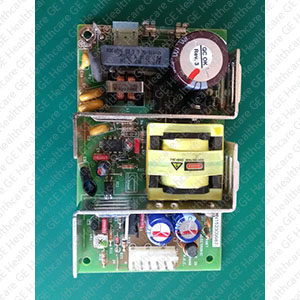

The Power Supply 115/230 VAC 26, 5 VDC PCB Single Output is used in the MAC 1200 battery, which is part of the Computed Tomography (CT) system. It is used for automatic battery charging during line-power operations. The basic function of the power supply converts mains AC to low-voltage regulated DC power. The switching power supply generates the fundamental device voltage for the PCB control and for the PCB battery charge. This power supply operates for 115-230 VAC input voltage and offers DC output depending by the industry requirements. It provides a maximum output voltage 24 VDC, the maximum load current 1.5A. Over voltage protection mode of the power supply is defined as 60% rated load. The inrush current is defined at 25° C cold start and EMI capacitors are excluded. Ripple and noise are defined with 15 MHz BWL oscilloscope and 1X probe with 0.47uF of output capacitors.

Kompatible Produkte

MAC 1100

MAC 1100

MAC 1200

MAC 1200

MAC 1200ST

MAC 1200ST
